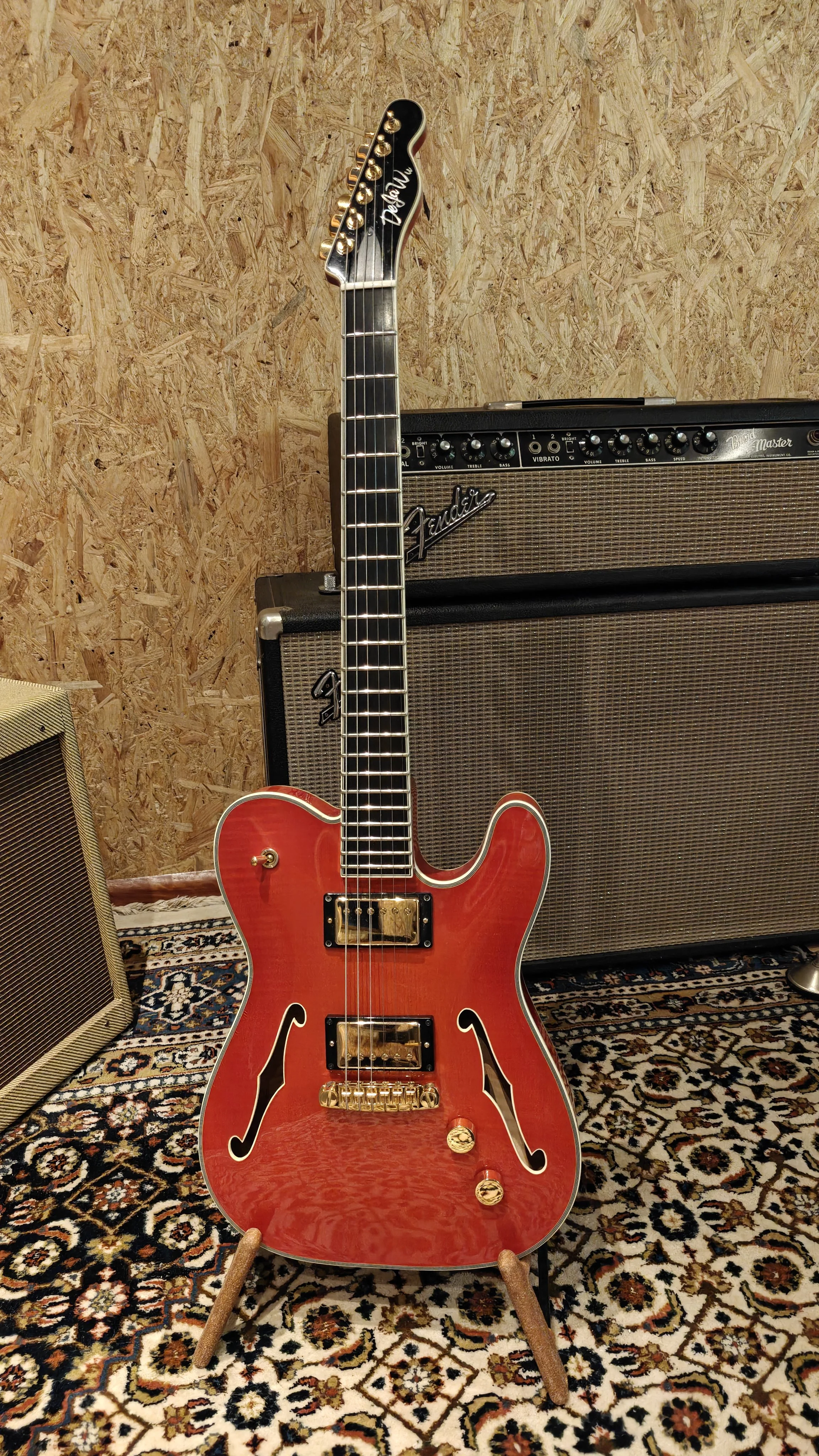

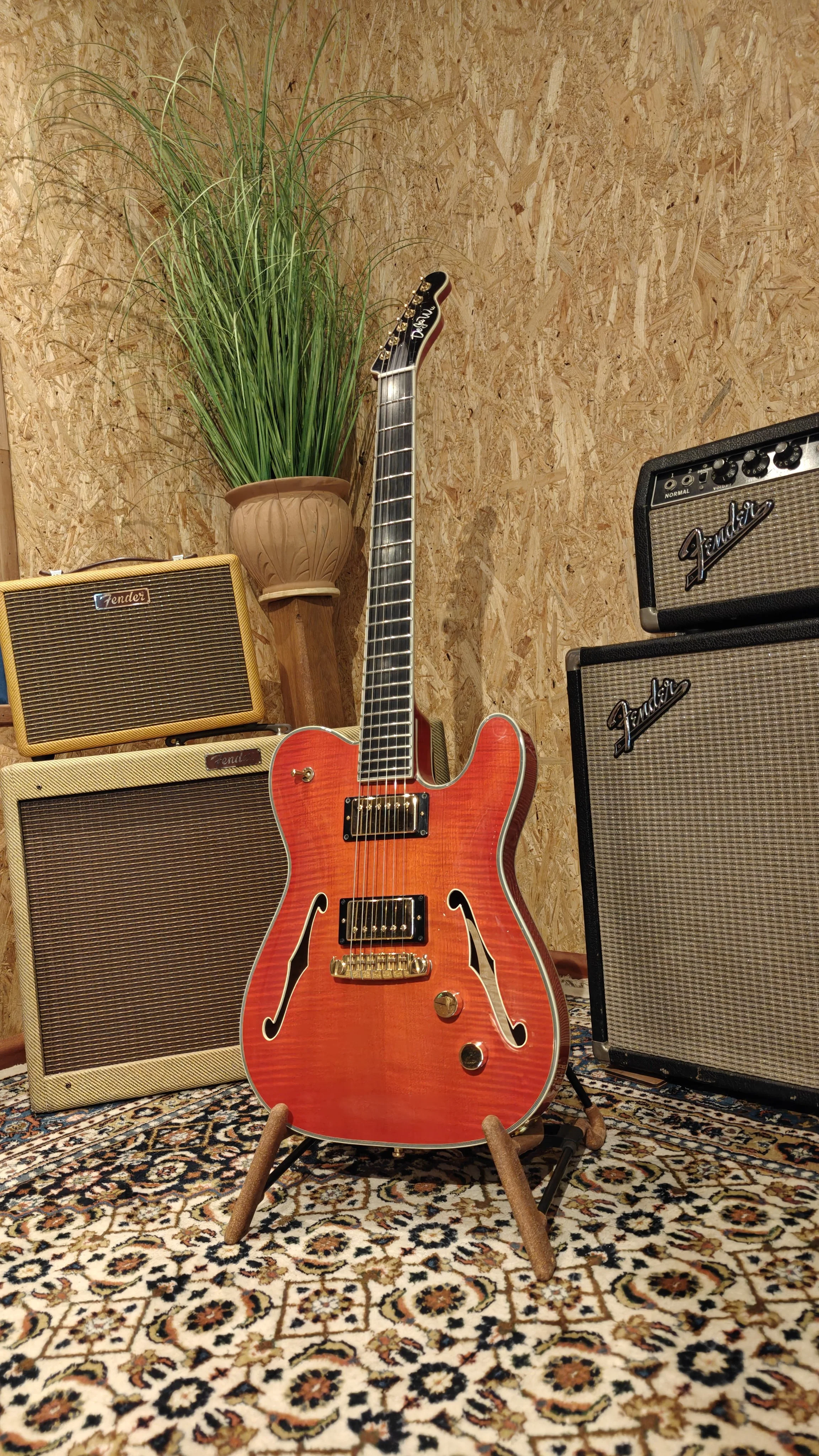

T-ULTIMATE MANDARIN



DESCRIPTION

The T-Ultimate Mandarin is a true eye-catcher, built around an exceptionally fine piece of book-matched flame maple. Its vivid orange-red burst isn't sprayed on in a single coat — it's built up through multiple thin layers of nitro-cellulose lacquer, hand-polished between each application. The result is a finish that highlights the natural depth and movement of the wood grain, giving every instrument a completely unique look.

Underneath the striking top is a semi-hollow body and five-piece set neck, both hand-carved from solid flame maple. Like all our semi-acoustics, it features a solid square center block at the bridge position. Our construction method eliminates feedback issues entirely while preserving the guitar's natural acoustic resonance, and because there's no tension across the top, it stays stable without warping or deforming over time. The ebony fingerboard, with a 12" radius and D-shape neck profile, delivers smooth, fast action across all 22 frets, while subtle side dots help you orientate the neck.

Tonally, it's outfitted with UNO Custom '59 pickups for warm, vintage-inspired character, a Schaller Signum bridge for rock-solid tuning stability and sustain, and a simple three-position toggle switch with single volume and tone controls — no-nonsense electronics that let the wood and pickups do the talking.

Finished in Mandarin Orange with gold hardware throughout — including Schaller M6 tuners, speed knobs, and S-Locks — and weighing in at just 2.7 kg, the T-Ultimate Mandarin is as comfortable to play for hours as it is impossible to put down.



SPECIFICATIONS



Design: Semi Acoustic, Hand carved
Top: Solid Maple, Hand carved, book matched
Back & Sides: Solid Maple, Hand carved, book matched
Solid Square Center Block: At the Bridge/Tailpiece position
Body Thickness: 2'' / 50.8 mm
Body Width: 12.7'' / 32.2 cm
Binding: 7-ply, flame maple

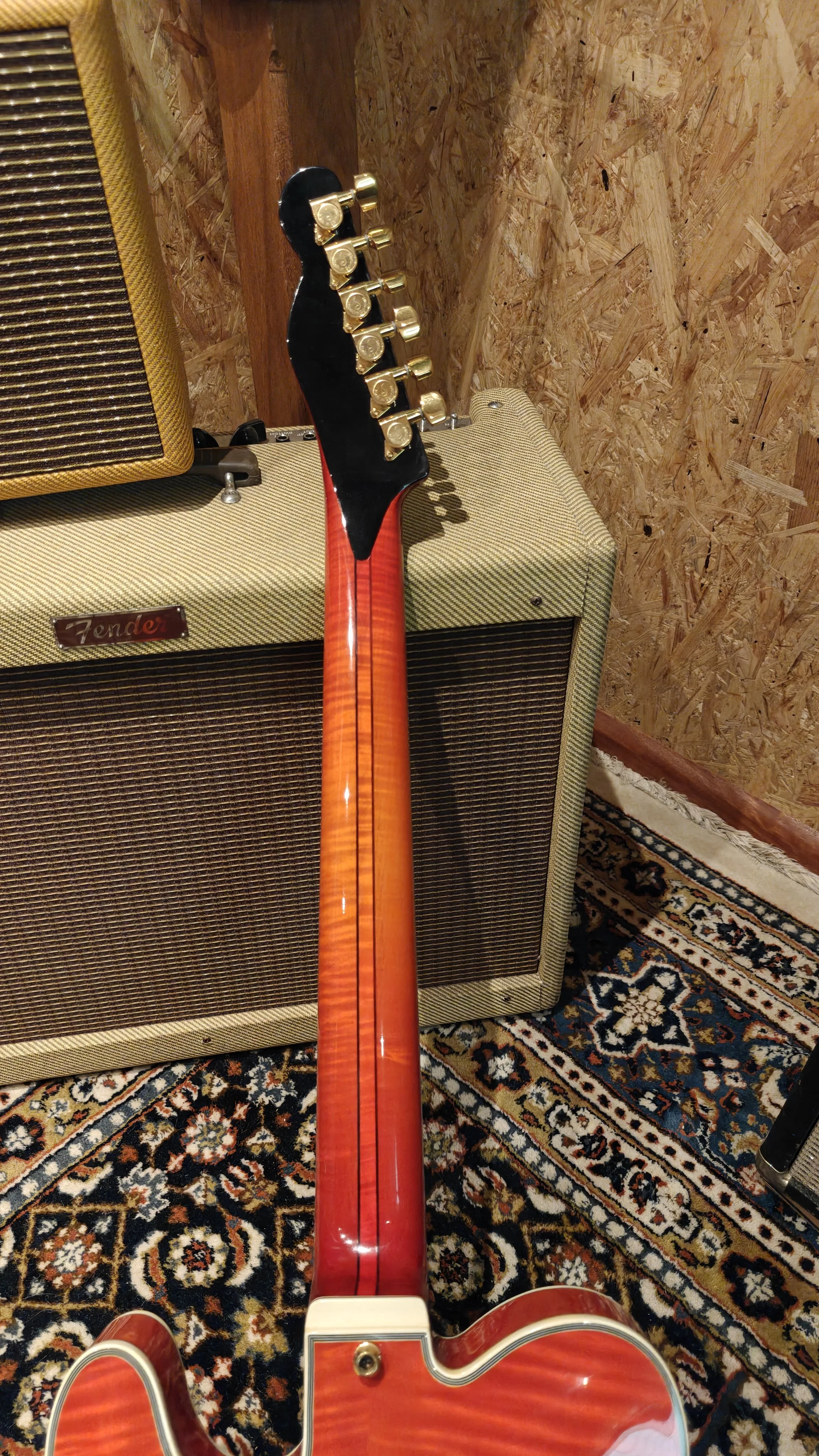

Neck: Five-piece set neck, Maple
Neck Shape: D
Neck Joint: Set-in dovetail
Truss Rod: Adjustable, double-action
Truss Rod Cover: Ebony
Head stock: Ebony overlay
Head stock - neck angle: 15°
Logo: Mother of pearl
Fret board: Ebony
Fret board Radius: 12'' / 30.5cm
Fret Wire: Nickel/Silver
Number of Frets: 22
Fret board Inlays: No inlays, dots on de side of the neck
Nut type:
Real Bone
Nut width: 1.77''/ 45 mm
Width at Last Fret: 2.26'' / 57.4 mm
Scale: 25.5'' / 64.8 cm
Pickups: UNO Custom ‘59
Pickup covers: Closed
Pickup Rings: Standard black
Switch: Three position toggle switch
Controls: 1x Vol, 1x Tone
Pots: CTS-Pots
Capacitor: Orange Drop
Bridge/Tailpiece: Schaller Signum Bridge
Tuners: Schaller M6 Tuners
Knobs: Schaller Speed Knobs
Jack Plate: Schaller
Strap Button: Schaller S-Locks
Strap: Harvest Leather strap
Finish: Nitrocellulose, Transparent, Hand polished
Color: Mandarin Orange
Hardware color: Gold
String Gauge: D’Addario XSE 10-46 Coated Nickel Plated
Case: Harvest Leather Bag
Weight: 2.7Kg

*The mentioned companies are not affiliated with Dejawu Guitars

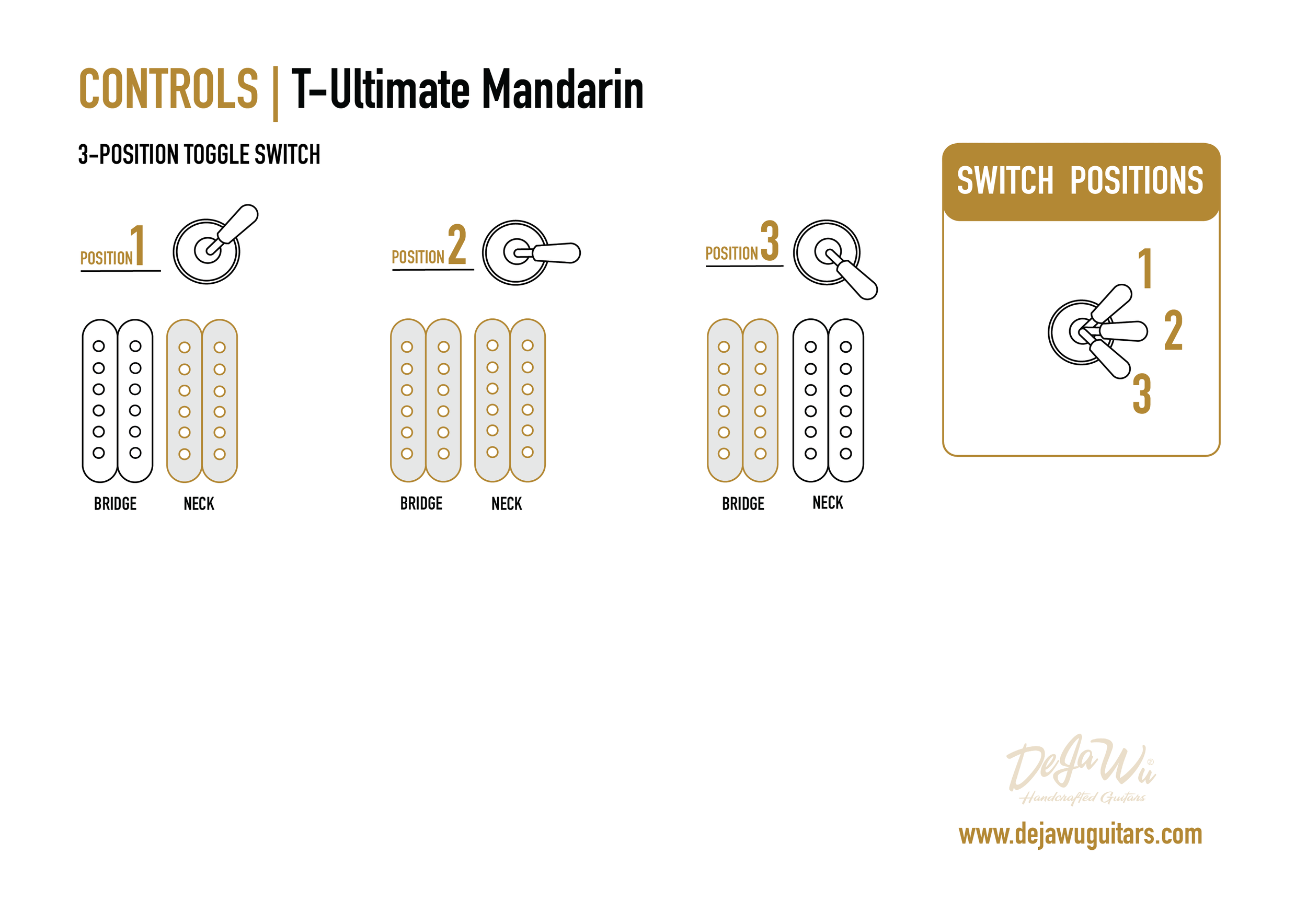

CONTROLS




DOWNLOADS


PRICE

Interested to try or buy this guitar?

Credits for the guitar photography on this page go to Dirk Pronk Photography.
